Value Oval Control
|
Lectrotab is excited to introduce our Value Oval Control in 2014. This new Oval control offers a more compact size, and omits LEDs for customers seeking a low-cost, waterproof control.
New Value Oval size is reduced by 1" (25.4mm) in width, 7/8" (22.2mm) height and 1/8" (3mm) thickness compared to the current Oval design.
|
|
|
| FEATURES |
- Completely sealed, completely waterproof and will not deteriorate in sunlight
- Tabs automatically retract and calibrate with key or accessory switch off
- Easy upgrade from rocker switch style control with BP-10 mounting plate
- No external power module required
- Operates up to 2 actuators per tab on 12vdc and 4 actuators per tab on 24vdc systems
|
| SPECIFICATIONS |
|
Model Number
|
Display Color
|
Number of Stations
|
Overall Width
|
Overall Height / Thickness
|
Mounting Hole Cutout (Diameter)
|
DC Voltage
|
Fuse Size Power Input (1 Actuator per Tab)
|
Fuse Size Power Input (2 Actuators per Tab)
|
|
SENL-01
|
Black
|
Single Only
|
3.20"/81mm
|
2.43"(62mm)/.35"(9mm)
|
2.125"/54mm-2.25"/57mm
|
12/24
|
12vdc = 20 amp
24 vdc = 10 amp
|
12vdc = 30 amp
24 vdc = 20 amp
|
| NEW OVAL (SENL) DIMENSIONS |

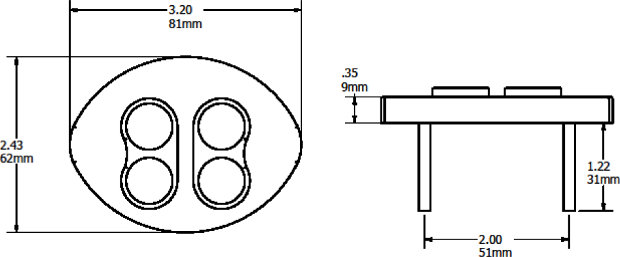

SENL-01 Value Oval Dimensions
